Mineral found in human bone can help fight toxic organic compounds

0
142

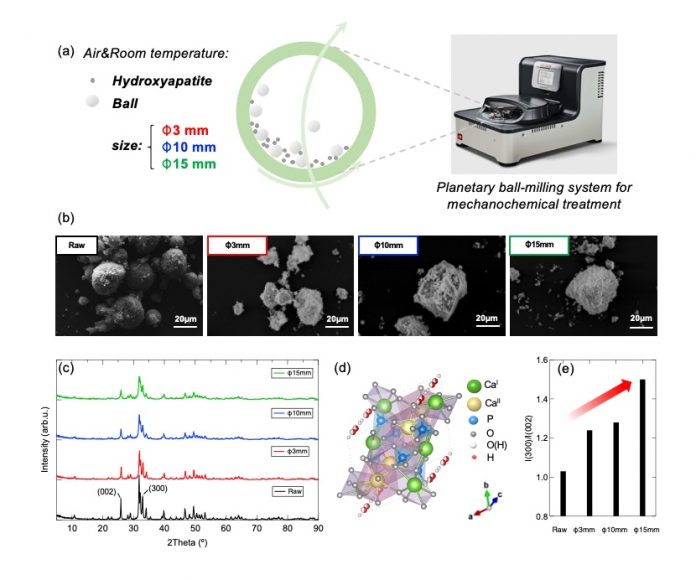

SEM images reveal that compared to loosely-packed particles in raw HAp, mechanochemically treated HAps show agglomerates of close-packed particles whose size grows with increasing ball diameter. The I(300)/I(200) pattern shows that surface tailoring happens predominantly on c plane.

Many industrial processes emit volatile organic compounds (VOCs) that are hazardous to human health. In a new study, scientists from NITech, Japan, tailor the catalytic activity of hydroxyapatite, a mineral contained in human bones, using mechanical stress. This method was inexpensive and resulted in a 100% VOC conversion, potentially opening doors to effective climate control.

A team of scientists led by Prof. Takashi Shirai from Nagoya Institute of Technology (NITech), Japan, reported a complete catalytic decomposition of VOC using an inorganic compound called “hydroxyapatite” (HAp), a naturally occurring form of the mineral calcium phosphate that makes up most of the human bone structure.

“HAp is made of elements abundant in nature, is non-toxic and exhibits high biocompatibility. Our results, thus, opened up a new possibility for designing cheap, noble-metal-free catalysts for VOC control,” says Prof. Shirai.

In a new study published in Scientific Reports, Prof. Shirai and his colleague Yunzi Xin from NITech now take things further by tailoring the “active surface” of HAp using a mechanochemical treatment under ambient conditions that leads to a highly efficient catalytic oxidation of VOC with 100% conversion to harmless compounds.

Specifically, they mixed initial HAp with ceramic balls in a vessel and conducted “planetary ball milling” at room temperature and ambient pressure. This essentially altered the chemical structure of HAp and allowed for its selective tailoring by simply changing the ball size.

By using different ball sizes (3, 10, and 15 mm) to systematically vary the morphology, crystallinity, surface defects/oxygen vacancy, acidity/basicity, and VOC affinity of HAps, the
scientists carried out their characterization using various techniques such as scanning electron microscopy, powder X-ray diffraction, Fourier transform infrared spectrometry, X-ray photoelectron spectroscopy, electron spin resonance analysis, surface acidity/basicity evaluation, and gas-flowing diffuse reflectance infrared Fourier transform spectroscopy.

They observed a predominance of oxygen vacancy formation in the PO43- (triply charged
PO4) site along with an enhanced basic site population caused by selective mechanochemical activation of the c-plane (plane perpendicular to the symmetry axis) of the hexagonal HAp crystal and attributed it to the excellent catalytic conversion of VOC to CO2/CO.

Moreover, they found that HAps treated with 3 mm balls showed superior catalytic activity over that treated with 10- and 15-mm balls, even though larger balls caused more defects and basicity. By looking at the surface absorption of a VOC, ethyl acetate, scientists attributed this anomaly to the inhibited absorption of ethyl acetate in HAp treated with larger balls, leading to suppressed catalysis.

The results have excited scientists about the future prospects of HAps. “We expect that our catalyst will contribute significantly to VOC controlling and environmental cleaning all over the world by next decade, achieving the sustainable goals of clean air and water, affordable energy, and climate action,” comments Prof. Shirai, excited.
